針對不同場域提供所需的複合型能源監測,包含環境與能源相關之數據監視
• 分散式能源複合監測
• 根據不同的使用情境監測用電效率
• 系統異常通知
• 遠端控制與檢測
協助夥伴靈活調整各場域配置,掌握設備即時狀況,確實延長現場設備壽命
• 閘道器與場域設備之健康度監控
• 儲能設備的電池充放狀態與轉換狀態監測
• 場域初始配置設定和部署
• 裝置調整與檢測報告
衡量電網的能源利用率,有效降低維運成本
• 能源效率測量與驗證(M&V)
• 基於相關環境指標的產電與用電預測
• 問題排除之管理
依照不同終端使用情境與架構需求提出適合的服務,創造合作夥伴更多可能
• 系統整合與規劃服務
• Web service / API介接服務

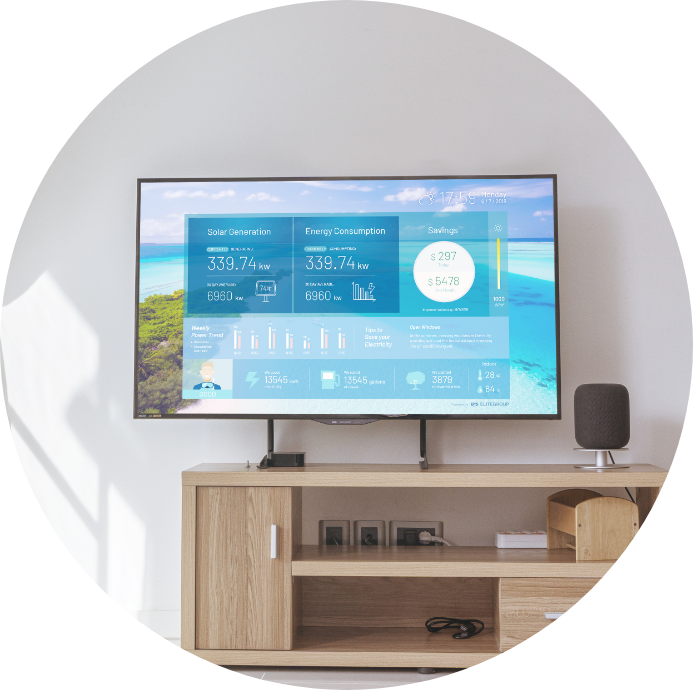

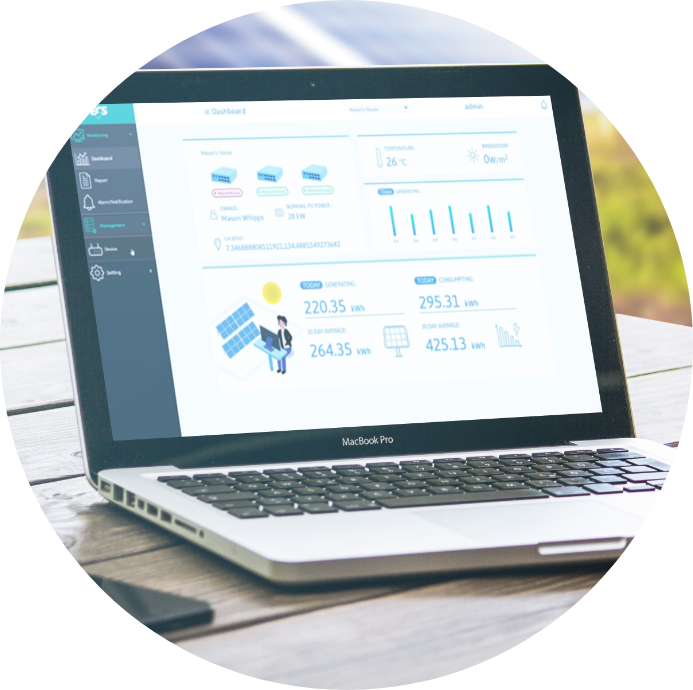

• 互動儀表板與能源可視化服務
• 企業數位轉型諮詢
• 量身打造的合作夥伴平台
在導入場域時,常處於連結受限或間歇性連接的環境,為了擴充能源業相關之通訊協定與導入通用的資料基礎架構,以確保夥伴能透過運行我們的邊緣模組,成功介接各種行業應用設備,並符合多國資料傳輸規範。 藉由智慧調節與排程及切換運作模式等邊緣模組,確保數據流通,穩定上傳,與雲端產生互動。
* IEC61850 Protocol Stack
* OpenFMB Framework
破除裝置與雲端的距離限制。 在本地部署我們的邊緣閘道器,並使用預安裝的邊緣模組來分擔在傳統上需要在雲中完成的數據洞察和操作。 邊緣運算資源讓應用程序可以在最佳網絡級別下分區運行,以縮短響應時間並顯著減少不必要的數據。 隨著生成數據的環境傳感器和移動設備數量的增長,如何妥善保管已收集之資訊的需求也持續升高。 透過微軟Azure加密憑證機制,能確保遠端擴充模組、收集裝置與場域狀態、遙測和監控設備時的安全性,不必擔心資料遭人竊取或竄改。
微軟Azure物聯網架構非常完整,並擁有幾大特色: 從管理面來看,微軟啟用了對Azure IoT Edge豐富的管理服務,不再受限於傳統的SDK做法。同時也支持不同作業系統,如Windows與Linux,在整合系統通訊時是一大優勢。 另外,Azure架構支持無縫部署,換句話說,在未來我們可以持續導入自行開發或是與第三方合作之邊緣模組,像是影像識別或是數據分析等。

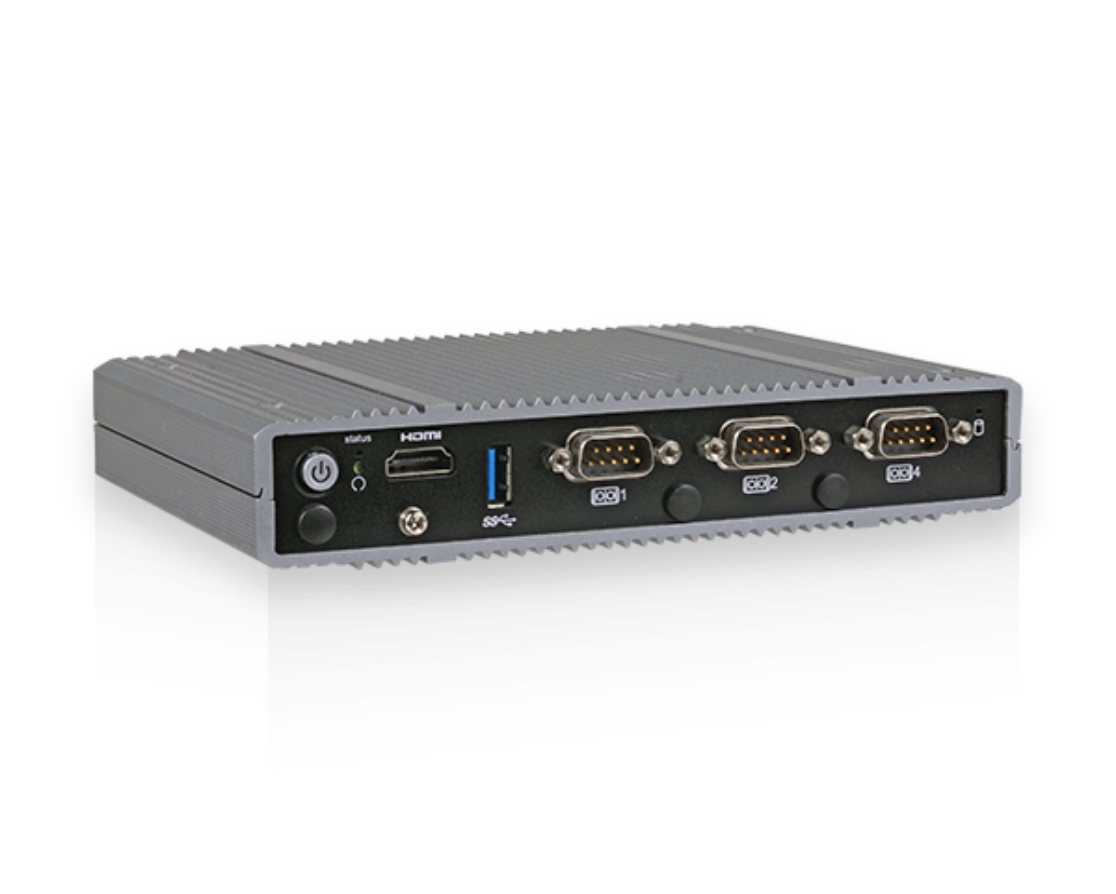

The EGS-M01 get flexible connectivity and edge computing abilities which helps for site operation in data inquisition, device management through ethernet or mobile connection.

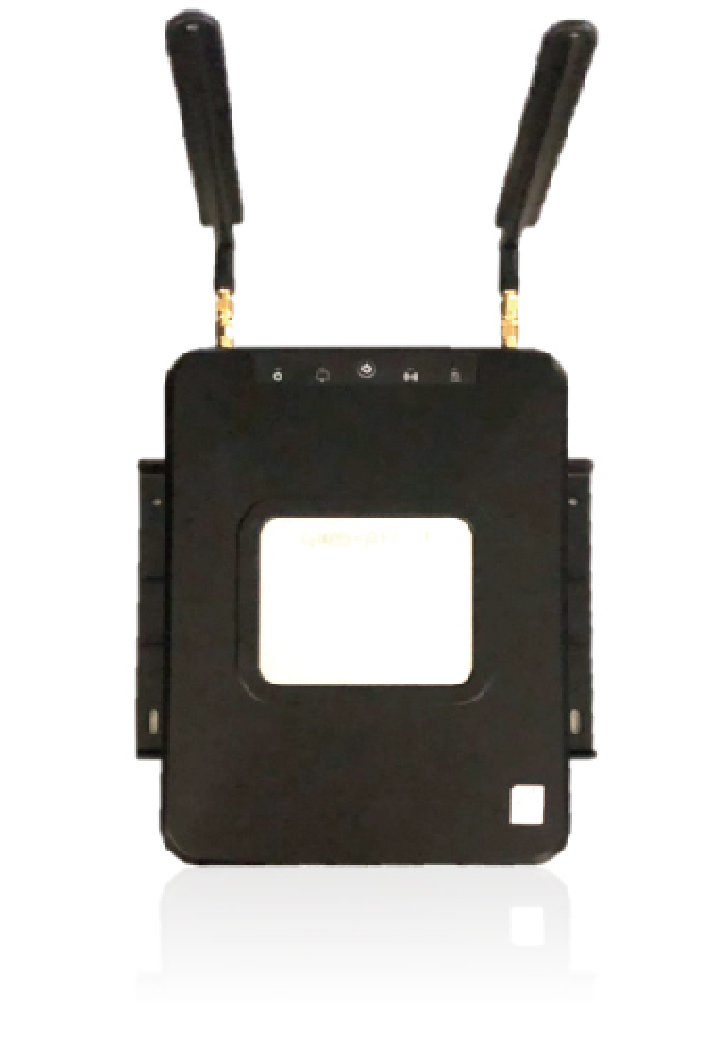

The GWS-APL is Azure PnP approved device. Provides edge computing abilities make field workers easily utilize in energy site for data aggregation through ethernet.

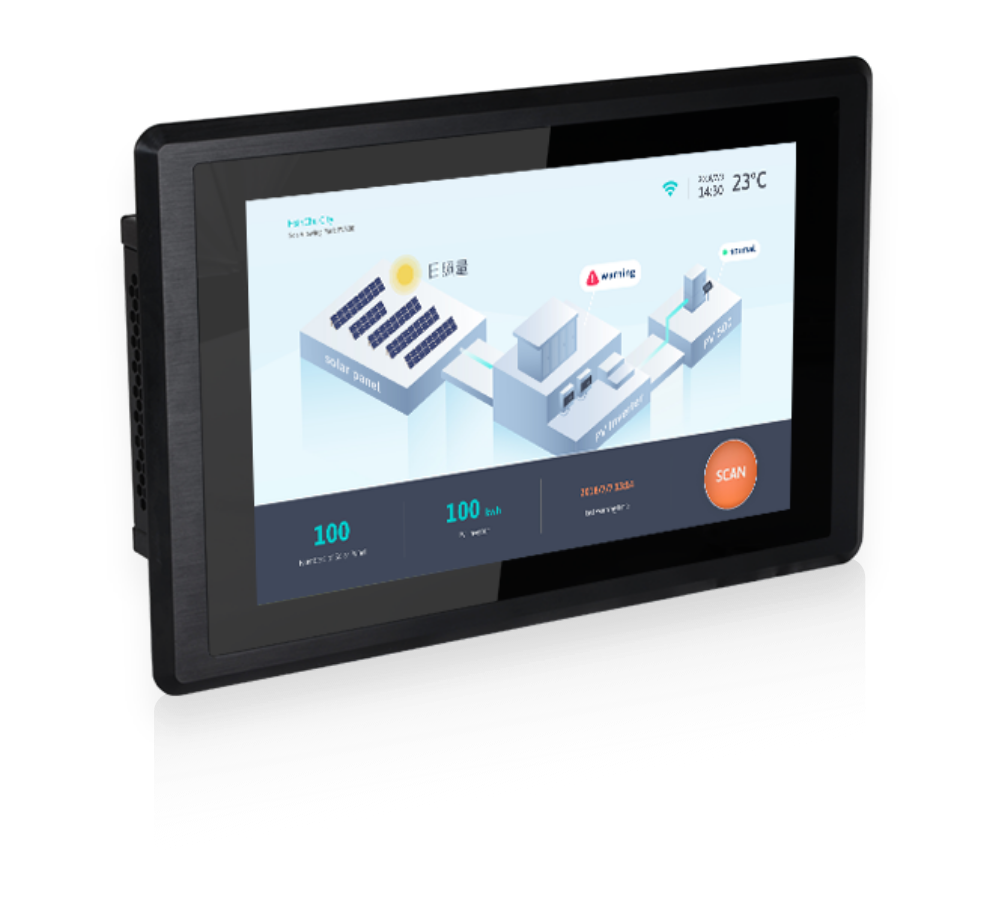

The EGS-M11 10.1 inch HMI provides edge computing abilities which helps for detail site operation by interactive application for improving maintenance performance and various special add-on service through ethernet or mobile connection.
System | Construction | Aluminum + Metal Aluminum |
---|---|---|
Dimensions (W x H x D) | 180mm x 33mm x 121.2mm | |
Weight | 800g | |
Mounting | Wall/VESA/DIN Rail mount | |
Processor | Intel Atom® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W | |
Memory | 4GB non-ECC Memory Onboard | |
Storage | 32GB mSATA | |
Power | Type and connector | DC Jack (Wide Range 9~36V in) (60W, 12V/5A) |
Graphics | Controller | Intel® HD Graphics |
Display |
1x HDMI (resolution up to 1920x1080 @ 60Hz) 1x VGA (24-bit, resolution up to 2560x1600 @ 60Hz) |
|
Watchdog Timer | Output & Interval | System Reset, Programmable via Software from 1 to 255 Seconds |
Expansion | Interface |
1 x Full-size Mini PCIe (PCIe/USB/3G/GPRS) 1 x Half-size Mini PCIe (PCIe/USB/LPC) |
I/O | Front |
3 x RS-232/422/485 (DB-9) (one supports 8-bit DIO) 1 x USB 3.0 (Type A) port 1 x HDMI port (1920x1080 @ 60Hz ) 1 x reset button 1 x power button 3 x Wi-Fi Module Antenna Hole |
Rear |
1 x DB-9 serial port: supports RS232/422/485 1 x VGA port (2560x1600 @ 60Hz ) 4 x USB 2.0 (Type A) ports 2 x RJ45 LAN ports 1 x 9~36V DC-in jack |
|
Software | OS | Ubuntu 16.04 |
Edge module | Edge X | |
Environment | Operating Temperature | 0°C~60°C (SSD/mSATA) |
Storage Temperature | -20°C~85°C | |
Certifications | Certifications | CE, FCC Class B, RoHS, UL, CCC |
System | Construction | |
---|---|---|
Dimensions (W x H x D) | 214 x 250 x 36mm | |
Weight | 550g | |
Mounting | Wall mount | |
Processor | Intel Atom® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W | |
Memory | 2GB Memory Onboard | |
Storage | 32GB eMMC | |
Power | Type and connector | DC Jack (12V in) (60W, 12V/5A) |
Graphics | Controller | Intel® HD Graphics 500 |
Display | N/A | |
Watchdog Timer | Output & Interval | System Reset, Programmable via Software from 1 to 180 Seconds |
Expansion | Interface | N/A |
I/O | Front |
32 x RS-232/422/485 (DB-9) 1 x USB 2.0 (Type A) port 2 x RJ45 LAN ports 1 x 12V DC-in jack |
Rear |
1 x DB-9 serial port: supports RS232/422/485 1 x VGA port (2560x1600 @ 60Hz ) 4 x USB 2.0 (Type A) ports 2 x RJ45 LAN ports 1 x 9~36V DC-in jack |
|
Software | OS | Ubuntu 16.04 |
Edge module | Edge A | |
Environment | Operating Temperature | 0° C ~ 70° C |
Storage Temperature | -40° C ~ 85° C | |
Certifications | Certifications | BSMI |
System | Construction | Aluminum Front Bezel |
---|---|---|
Dimensions (W x H x D) | 294 x 193mm x 48mm | |
Weight | 1700g | |
Mounting | Panel/VESA mount | |
Processor | Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W | |
Memory | 4GB Single Channel DDR3L 1333MHz | |
Storage | mSATA Card, 32GB | |
Power | Type and connector | DC Jack (16~24V) (120W, 19V/6.3A) |
Graphics | Controller | Intel® HD Graphics |
Display |
10.1" 1280x800 TFT LCD Panel with Capacitive Touch Screen 1x HDMI (resolution up to 1920x1080 @ 60Hz) |
|
Watchdog Timer | Output & Interval | System Reset, Programmable via Software from 1 to 255 Seconds |
Expansion | Interface |
1 x Full-size Mini PCIe (PCIe/USB/4G) 1 x Full-size Mini PCIe (mSATA) 1 x Half-size Mini PCIe (PCIe/USB/LPC) 1 x SIM Socket |
I/O | Front |
3 x RS-232/422/485 (DB-9) (one supports 8-bit DIO) 1 x USB 3.0 (Type A) port 1 x HDMI port 1 x Power Button 1 x Reset Button 2 x Wi-Fi Module Antenna Hole |
Rear |
2 x GbE (RJ-45) (10/100/1000Mbps) 1 x RS-232/422/485 (DB-9) 1 x RS-232 (DB-9) 3 x USB 2.0 (type A) 1 x Line-out 1 x Mic-in |
|
Software | OS | Ubuntu 16.04 |
Edge module | Edge X | |
Environment | Operating Temperature | 0°C~60°C |
Storage Temperature | -30°C~80°C | |
Certifications | Certifications | CE, FCC |
#Communication
Edge A與現場設備同步並進行通信。 轉譯來自不同介面的信號,並在設備間交換信息,例如Modbus RTU/ TCP,CAN總線等。
#Information management
Edge X專注於信息管理。
從Edge A提取數據後,將數據劃分為多個級別並存儲在本地端。再依據不同之雲端服務需求,透過排程器將相關訊息傳遞到雲端。有效過濾了無效冗餘的數據,間接減輕了雲分析服務的負擔。
